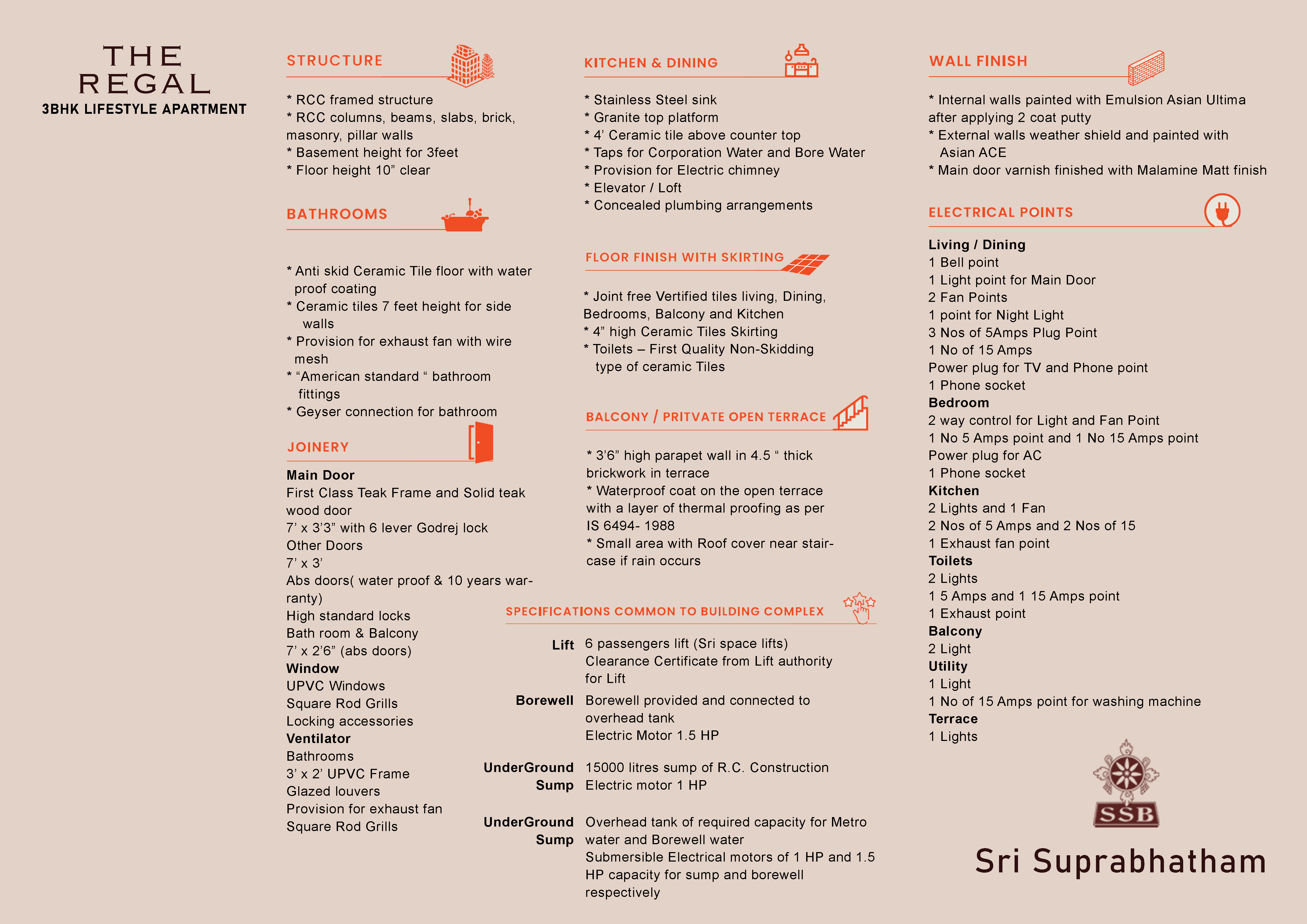

Item | Specification |
---|---|
Foundation
|
Earthquake resistant RCC framed structure with RCC columns connected by RCC plinth beam. (The I.S. design codes from Foundation to Roof is attached). Analysis of structural design is done by using STAADPRO. |
Flooring
|
Joint free Vertified tiles living, Dining, Bedrooms, Balcony and Kitchen |
Doors
|
Main Door |
Windows
|
UPVC Windows |
Ventilators
|
Bathrooms |
Kitchen
|
Stainless Steel sink |
Bathroom
|
Anti skid Ceramic Tile floor with waterproof coating |
Bedroom
|
AC, TV and telephone points |
Living / Dining
|
Wash basin |
Terrace
|
3’6” high parapet wall in 4.5 “ thick brickwork in terrace |
Lift
|
6 passengers lift (Sri space lifts) |
Borewell
|
Borewell provided and connected to overhead tank |
Underground
|
15000 litres sump of R.C. Construction |
Overhead Tank
|
Overhead tank of required capacity for Metro water and Borewell water
|
Compound
|
5’ high compound wall with 4.5” brickwork around the building with gate pillars |
Lobby and Staircase Flooring
|
Granite flooring
|
Common Area Lighting
|
Adequate light points shall be provided around the building . in staircase area, meter room |
Phone cable
|
Telephone points shall be given in bedrooms and living room |
Pavement
|
Paving blocks in all the open space around the flats with red tiles inside |
Foundation and Superstructure
|
RCC framed structure |
Cement
|
Good Quality 53 grade- OPC & PPC Cement |
Steel
|
FE – 500 Grade |
Sand
|
Good Quality Sand |
Painting
|
Internal walls painted with Emulsion Asian Ultima after applying 2 coat putty |
Electrical work
|
3 Phase Electrical supply with manual change over facility
|
Electrical Points
|
Living / Dining 1 Bell point Bedroom 2 way control for Light and Fan Point Kitchen 2 Lights and 1 Fan Toilets 2 Lights Balcony 2 Lights Utility 1 Lights 1 No of 15 Amps point for washing machine Terrace 1 Lights |
Plumbing
|
4 gauge or 6 gauge pipes Prince ISI (6 for ground and 4 for walls)
|
Weathering
|
Weathering course on the open terrace with laying tile on it (reduction of heat) |
Soil test and Pest Control
|
Pest control measures upto plinth level with guarantee letter from the concerned |
Electrical switches
|
Kolors Krest |
Wires
|
Havells |
Bathroom fittings
|
American Standard |
Security system
|
Video Door Phone, CCTV |
Note:Specifications can be changed as per manufacture’s availability.

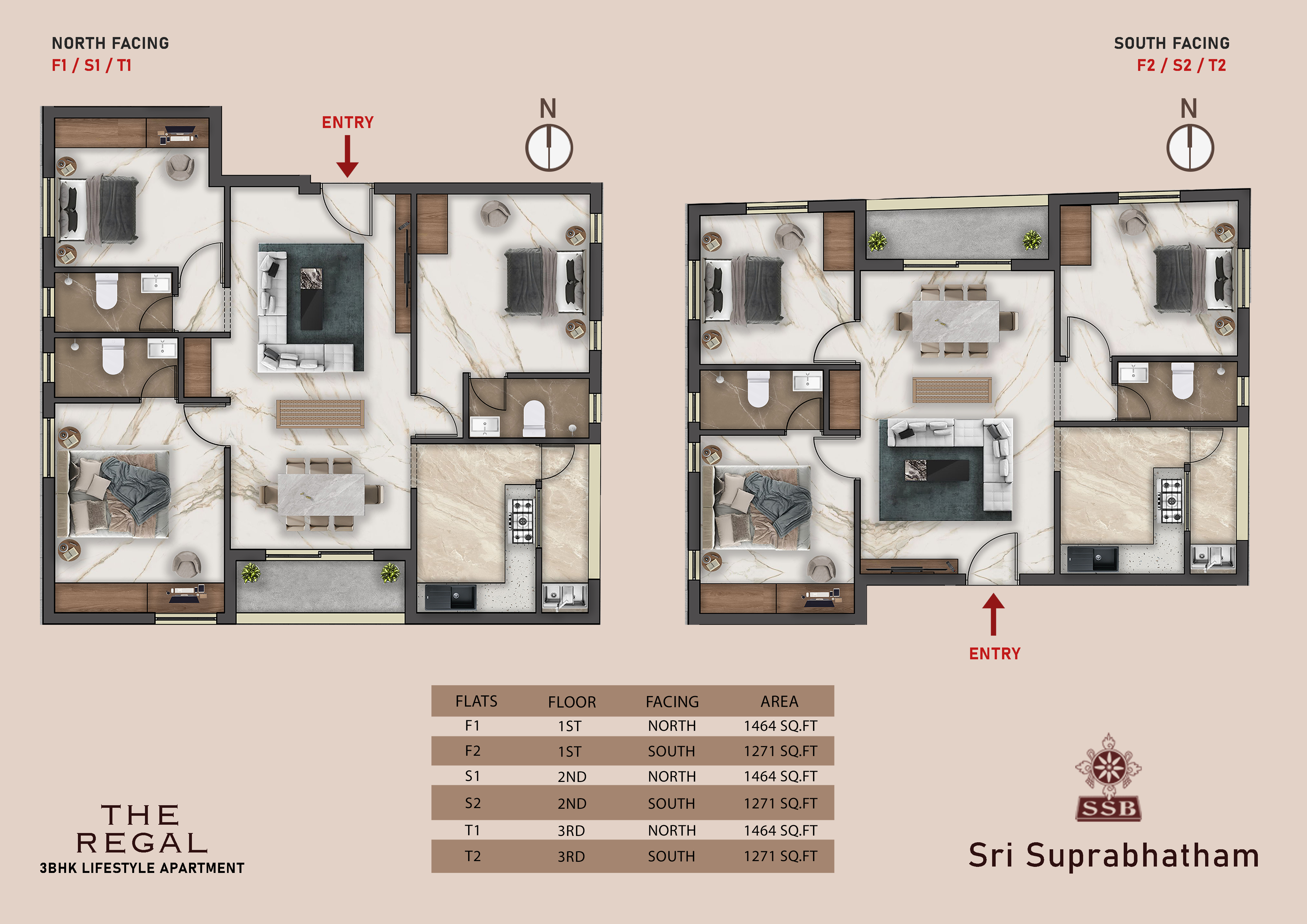

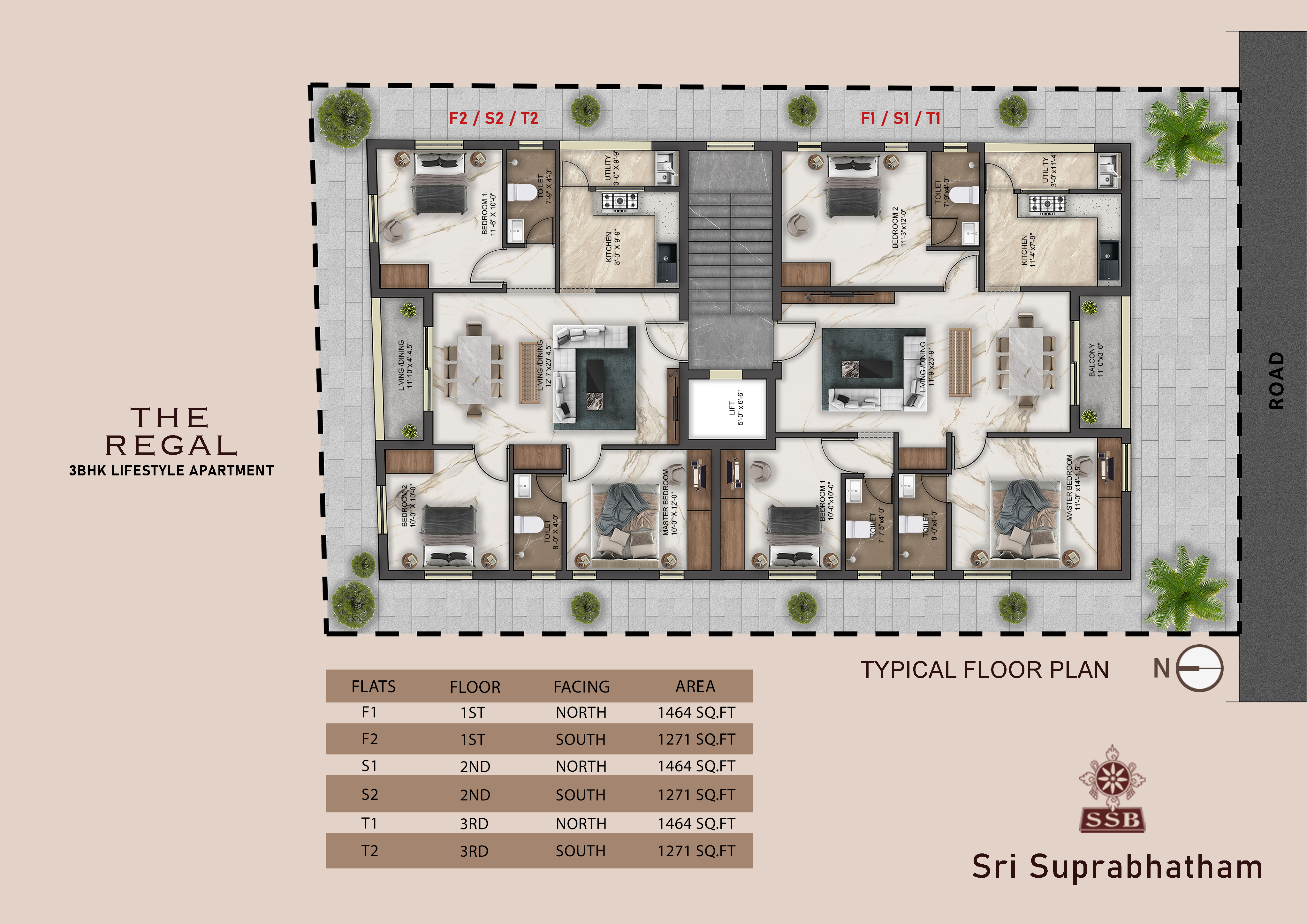

Click on the Floor plan to Download the PDF Download
S.NO | FLOOR | SQFT | BHK | AVAILABLE |
---|---|---|---|---|
1 | I | 1464 | 3 | |
2 | I | 1271 | 3 | |
3 | II | 1464 | 3 | |
4 | II | 1271 | 3 | |
5 | III | 1464 | 3 | |
6 | III | 1271 | 3 |
